Anchor Rod

Category： Self Drilling Anchor Bolt
Product description：Supplier : Tianjin Apex trade Co.,ltd Use: Anchor rod For mining，bolt anchor for mining anchor bolt，threaded rod anchor Grade： 40Cr，45#
Order online

Product Description

Product Introduction

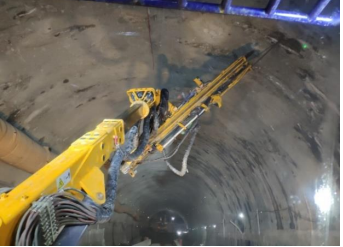

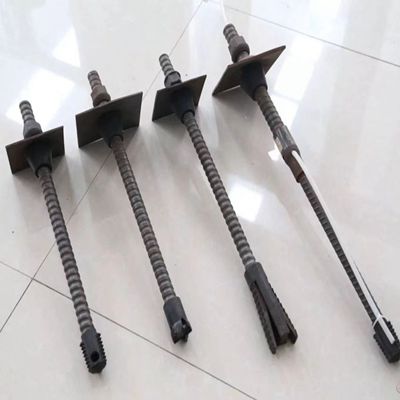

Hollow anchor bar means a rod that transfers the structures or geotechnical load to a stable rock formations, anchor bolt consists of rod, drill bit, coupling, plate, grouting stopper and nut. Widely used as an efficient anchoring means, in tunnel pre-support, slope, coast, mine, water conservancy projects, building foundation, roadbed reinforcement and geological diseases treatment such as landslip, crack, sink age. It's irreplaceable in narrow construction environment. Hollow anchor bar is made of seamless tube with high strength.
Advantages and Characteristics :
1.No casings required, because anchor bars can be drilled into loose soils without needing casings to support the boreholes.
2.Fast drilling and installation, because drilling, installation and grouting are in a single operation.
3.Both rope threads and trapezoid threads are robust and ideal for rotary-percussive drilling and ensuring a high level of bond with the borehole gout.
4.The hollow core not only serves for flushing during drilling, but also for grouting after drilling.
5.Continuous threads ensure the bars can be cut and coupled at any point, or extended.
6.Different anchor bits are available for different ground conditions.
7.Duplex anti-crossin process, hot-dip galvanized and epoxy coating system.

	R25N	R32N	R32S	R38N	R51L	R51N	T76N	T76S
Outside diameter (mm)	25	32	32	38	51	51	76	76
Internal diameter (mm)	14	19	16	19	36	33	52	45
Ultimate load capacity (KN)	200	280	360	500	550	800	1600	1900
Yield load capacity (KN)	150	230	280	400	450	630	1200	1500
Tensile strength, Rp0.2 (N/mm2)	800	800	800	800	800	800	800	800
Yield strength, Rp0.2 (N/mm2)	650	650	650	650	650	650	650	650
Weight(Kg/m)	2.3	3.2	3.6	5.5	6.5	8.0	16.0	19.7
Thread type (left-hand)	ISO 10208				ISO 1720		MAI T76 Standard
	En10083-1 (Alloy structure steel)
	Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical.
