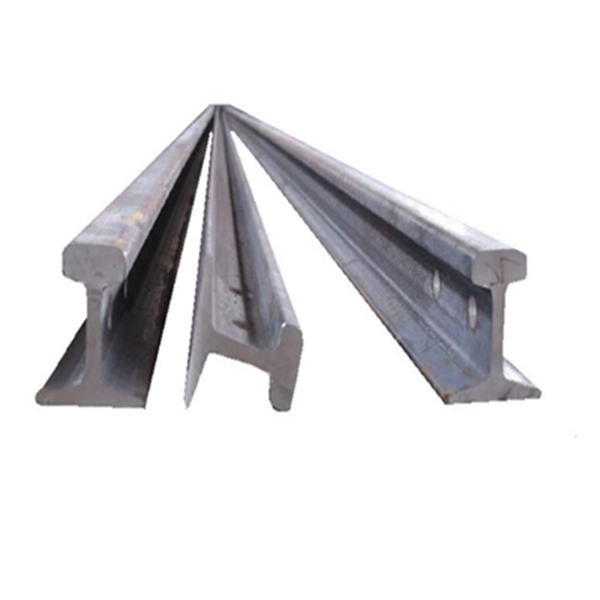

DIN536 Standard A120 Railway Steel Rail
Material: 50Mn/ U71MN/ 900A
Other size: A45, A55, A65, A75, A100, A120, A150
Application: Plant, Port, Crane and so on
Length: 6-12m
Accessories: welded rail clamp, rubber pad
Origina: China
| Standard: DIN536-1-1991 | |||||||
| Size | Specification (mm) | Weight(kg/m) | Steel Grade | Length (m) | |||
| Height | Base | Head | Web | ||||
| A55 | 65 | 150 | 55 | 31 | 31.8 | 50Mn | 5-12 |
| A65 | 75 | 175 | 65 | 38 | 43.1 | ||
| A75 | 85 | 200 | 75 | 45 | 56.2 | ||
| A100 | 95 | 200 | 100 | 60 | 74.3 | ||
| A120 | 105 | 200 | 120 | 72 | 100 | ||
